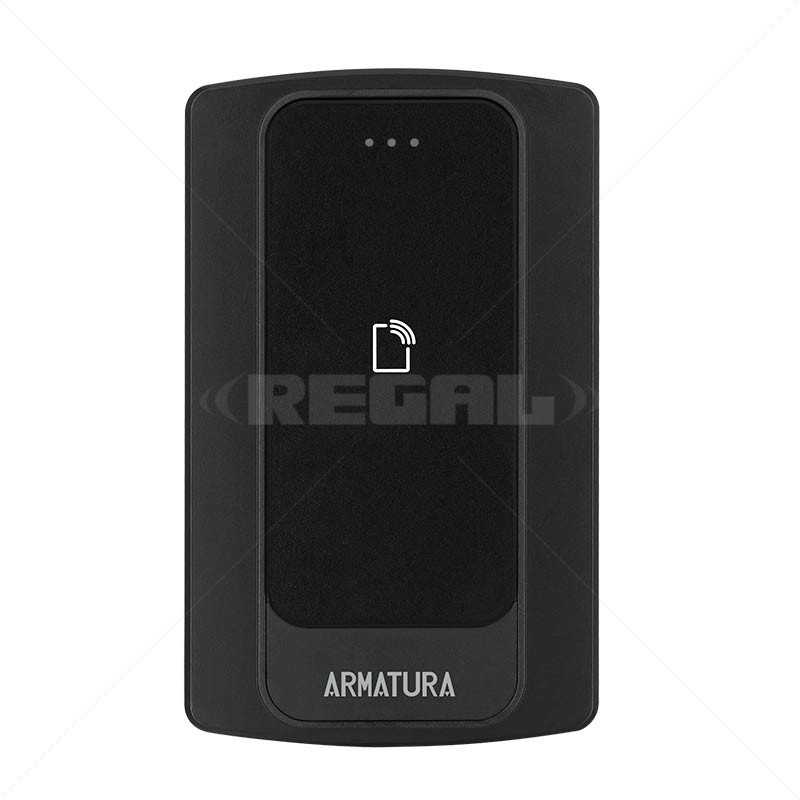

Armatura EP10C-DF Explorer EP Card Reader - 125 kHz / 13.56 MHz / BLE

Multi-frequency card reader (125 kHz / 13.56 MHz / BLE) with OSDP, AES128, EAL6+ crypto, IP68 and IK10.

The Armatura EP10C-DF Explorer EP is a secure access-control card reader supporting 125 kHz, 13.56 MHz and 2.4 GHz Bluetooth, accepting BLE, NFC, RFID and Mifare credentials. It communicates over Wiegand or RS485 (OSDP) and protects data with AES128 and an EAL6+ certified crypto chip. Rated IP68 and IK10 with a polycarbonate UL94-V0 housing, magnetic tamper detection and a wide -30C to 70C operating range, it is built for demanding indoor and outdoor door installations and pairs with the ARMATURA ID mobile app.

Brochure

Genuine stock in Lusaka
Delivered & installed
Warranty & local support

SPECIFICATIONS

At a glance

Frequency

125 kHz / 13.56 MHz / 2.4 GHz Bluetooth

Verification Token

BLE / NFC / RFID / Mifare

Communications

Wiegand / RS485 (OSDP)

Data Protection

AES128 & EAL6+ Crypto Chips

Visual Indicator

RGB LEDs

Audio Indicator

Buzzer (Configurable)

Power

150 mA / 12 VDC Max, 9 VDC to 24 VDC

Tamper

Magnetic Tamper Detection System

Certification

FCC, CE, UL294, EAL6+ Certified Crypto Chip

Protection

IP68 / IK10

Housing Material

Polycarbonate UL94-V0 & UL746C (F1)

Operating Temp.

-30C to 70C / -22F to 158F

Mobile App

ARMATURA ID

Full manufacturer datasheets available on request, ask us to size the right configuration for your volumes.
