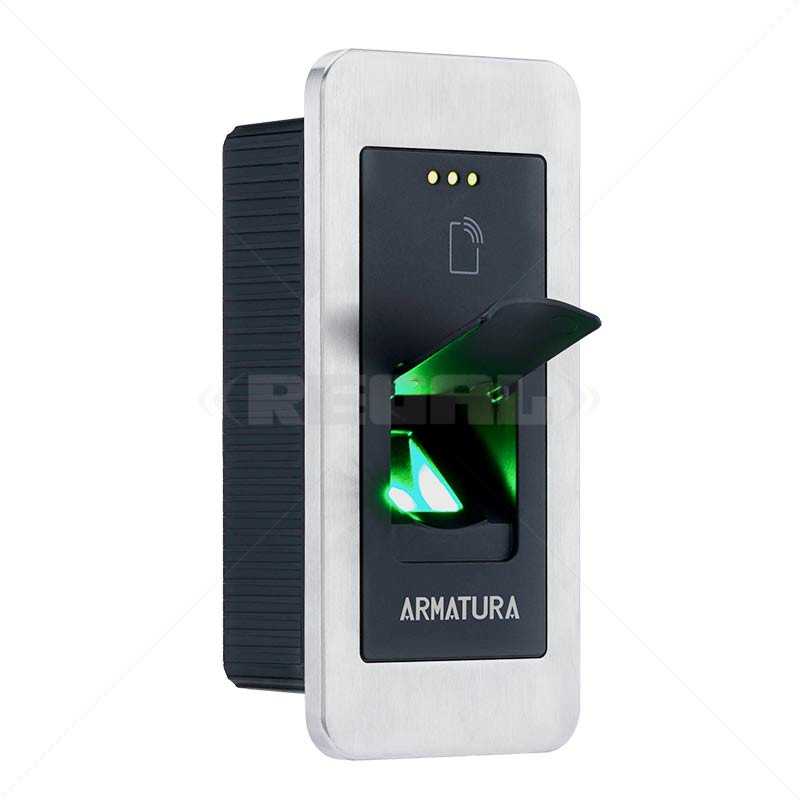

Armatura Explorer EP30CF-DF FP Secondary Reader - Dual

Multi-frequency fingerprint secondary reader (125 kHz / 13.56 MHz / BLE) with OSDP, AES128, EAL6+ and IP65.

The Armatura Explorer EP30CF-DF is a fingerprint-capable secondary access-control reader supporting 125 kHz, 13.56 MHz and 2.4 GHz Bluetooth, with BLE, NFC, RFID, Mifare and fingerprint verification. It communicates over Wiegand or RS485 (OSDP) and protects data with AES128 and an EAL6+ certified crypto chip. Flush mounted and rated IP65 with magnetic tamper detection and a -30C to 70C operating range, it adds biometric verification at the door and pairs with the ARMATURA ID mobile app.

Brochure

Genuine stock in Lusaka
Delivered & installed
Warranty & local support

SPECIFICATIONS

At a glance

Frequency

125 kHz / 13.56 MHz / 2.4 GHz Bluetooth

Verification Token

BLE / NFC / RFID / Mifare / Fingerprint

Communications

Wiegand / RS485 (OSDP)

Data Protection

AES128 & EAL6+ Crypto Chips

Visual Indicator

RGB LEDs

Audio Indicator

Buzzer (Configurable)

Power

150 mA / 12 VDC Max, 9 VDC to 24 VDC

Tamper

Magnetic Tamper Detection System

Certification

FCC, CE, UL294, EAL6+ Certified Crypto Chip

Protection

IP65

Mounting

Flush Mount

Operating Temp.

-30C to 70C / -22F to 158F

Mobile App

ARMATURA ID

Full manufacturer datasheets available on request, ask us to size the right configuration for your volumes.
