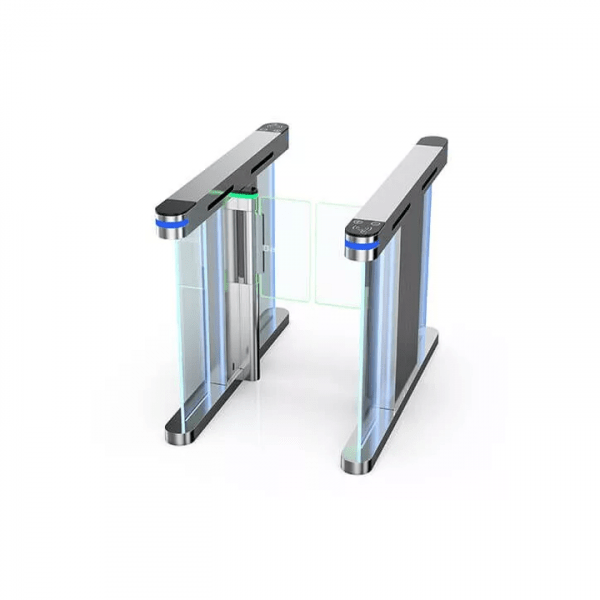

Daosafe Flap model DS 7000

Daosafe Flap model DS 7000

Speed gate DS7000 is designed in a super-fast, slim, and artistic style to provide access control at place with elegant requirement. The glass height can be extended to 1.8m, which can ensure higher security. The material is equipped with two types of LED light, directional indicators on the front cabinet and the LED shows the current working mode (open/close) on the top cover. This device is apt for businesses like business center, hotel, and hall.


Product Feature

  • Long-life performance, high operation dependability and fast response
  • The whole system runs smoothly, low noise, no mechanical impact
  • Single directional or Bi-directional is selectable
  • Automatic reset function: swing arms will lock automatically within 5s (can be setting) if passenger delay to entry
  • When power is off, swing arms will open automatically, which is complying with fire safety requirements
  • LED indicator (red × means no entry; green ? means entry)
  • Infrared sensor alarm function, in case of illegal intrusion and reverse intrusion
  • Anti-intrusion function, the turnstile is locked automatically until valid opening signal input
  • Anti-reverse function, the turnstile alarms if someone wants to entry in the reverse direction
  • Anti-trailing function, the turnstile alarm if someone wants to burst in without permission
  • Glass arms will reset automatically if is off position after strong hit. The movement will not be broken or damaged for bump
  • It has the fastest open and close speed rate, 0.2 second. The open and close speed rate can be adjusted
  • Easy to install and maintain
  • 3-year warranty support


Model No : DS7000

Brand : Daosafe

Framework Material : 304 Full Stainless Steel

Arm Material : Tempered glass

Dimension : 1605 * 127 * 1000mm

Weight : 75kg/pcs

Passage Width : 600-1200mm (One passage)

Arm Height : 900-1800mm (Max.)

Passing Direction : Single directional / Bi-directional

MCBF : 5 million

Power Supply : AC220V/110V, 50/60Hz

Operation Voltage : 24V DC

Power Consumption : 40W

Operation Temperature : -15 °C – 60 °C

Operation Humidity  : 0 ~ 95% (No freeze)

Working Environment : Indoor / Outdoor

Flow Rate : 50-55 people per minute

LED Indicator : Yes

Infrared Sensor : 6 pairs (standard)

Emergency : Automatic arm open when power off

Communication : Dry contact , Relay signal , RS485
